ENGINE-DRIVEN WELDERS
AIR COOLED
Gasoline(inverter)
FDF160A
Compact, lightweight, and built with high-capacity tanks for continuous, long-lasting power.
Gasoline(inverter)

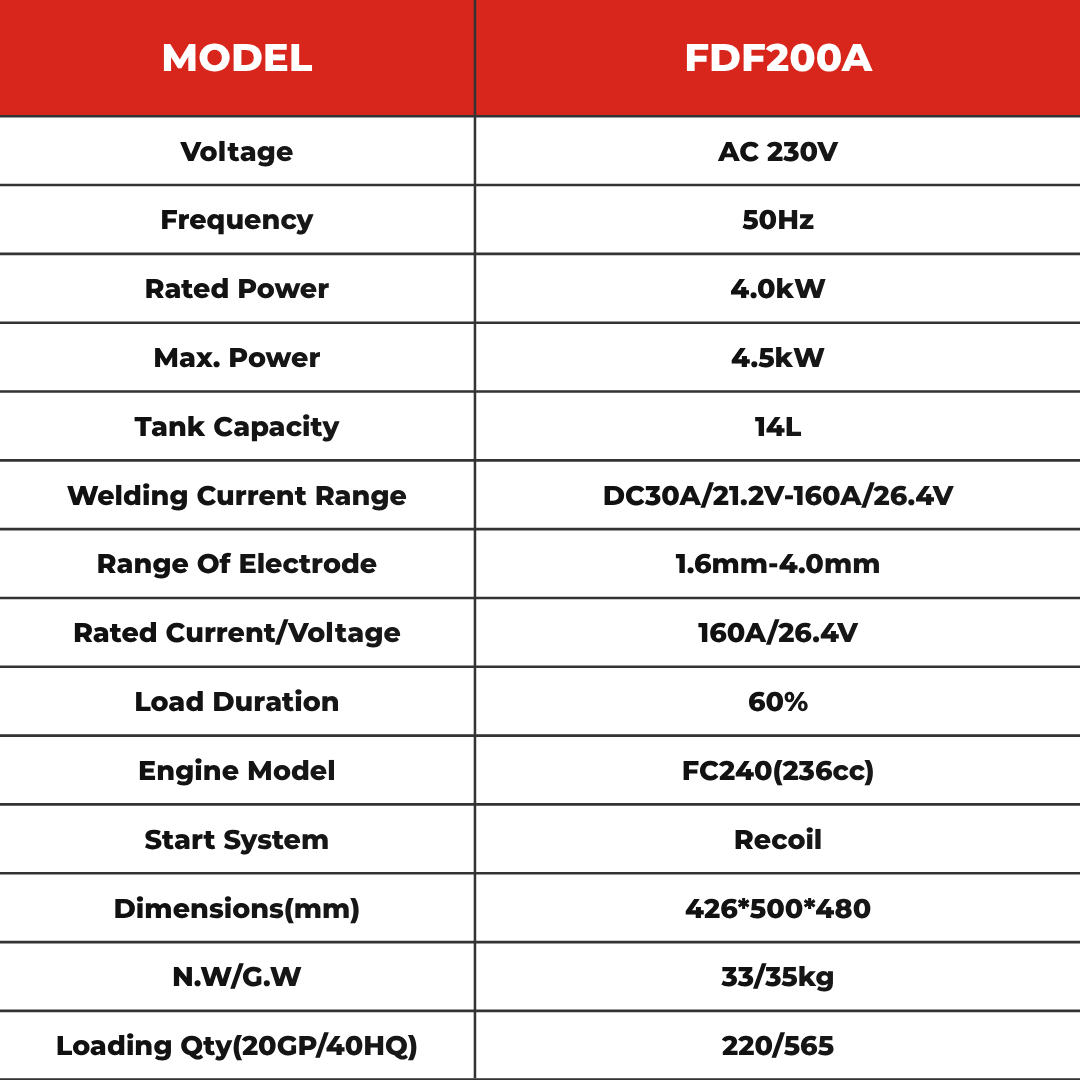

FDF200A
Compact, lightweight, and built with high-capacity tanks for continuous, long-lasting power.
Gasoline (traditional)

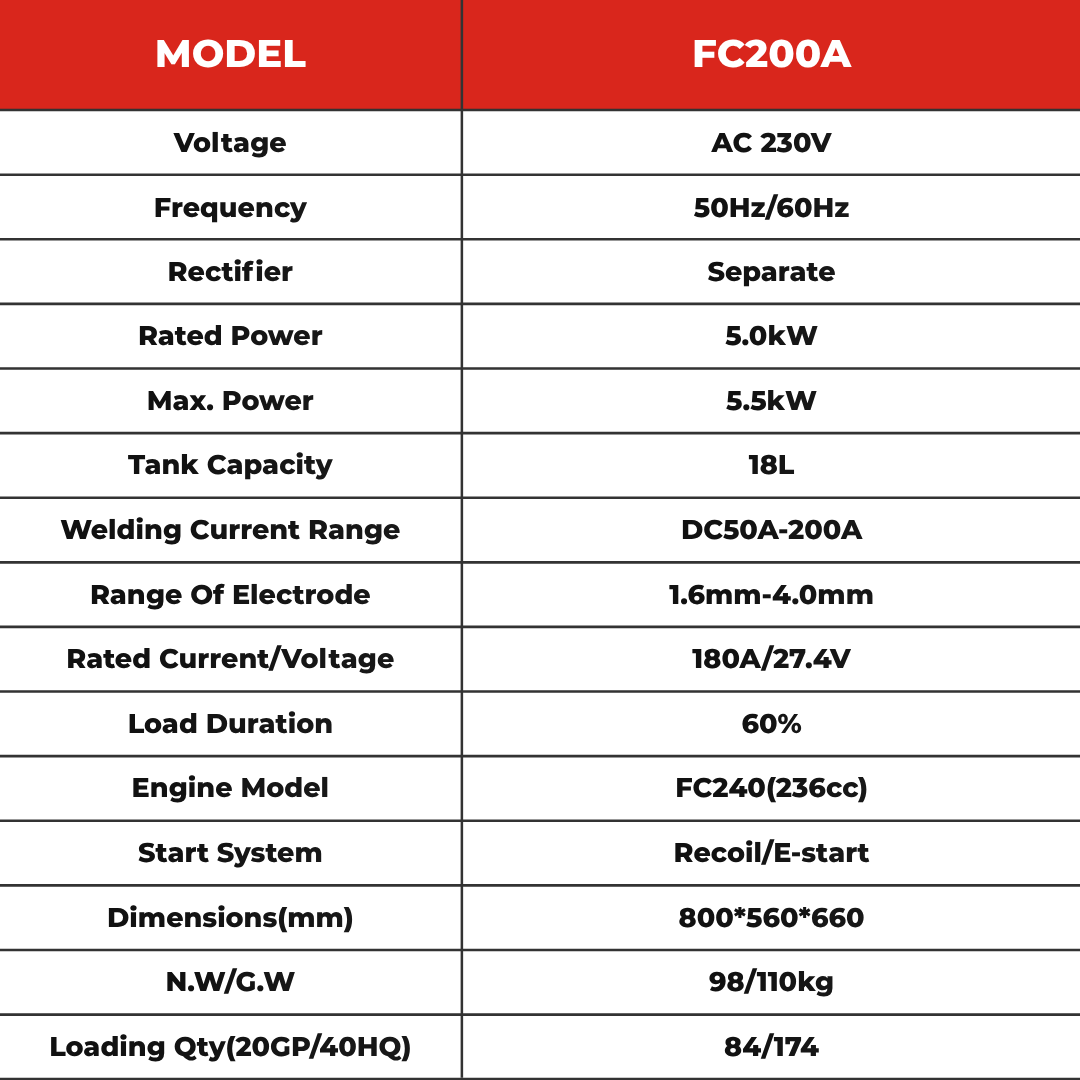

FC200A
Built tough for demanding jobs, the 14 HP FC200A combines 5.5 kW of power with an 18L long-run fuel tank.
Diesel
FCD200C
Featuring stable MDS/diode rectification and voltage regulation for smooth low-current welding, built with custom design options.
· Durability & Longevity
Diesel engines are known for their robust construction, allowing them to withstand heavy-duty use and last longer than gasoline engines.
· Fuel Efficiency
Diesel generators consume less fuel compared to gasoline models, reducing operating costs over time.
· Higher Power Output
Diesel engines provide greater torque and consistent power, making them ideal for industrial welding applications.
· Lower Maintenance
Diesel engines require less frequent maintenance due to their simpler ignition system (compression ignition vs. spark ignition in gasoline engines).
· Safety
Diesel fuel is less flammable than gasoline,
reducing the risk of fire hazards.
· Better Performance in Harsh Conditions
Diesel generators perform efficiently in extreme environments, including high temperatures and heavy workloads.
WATER COOLED
Diesel

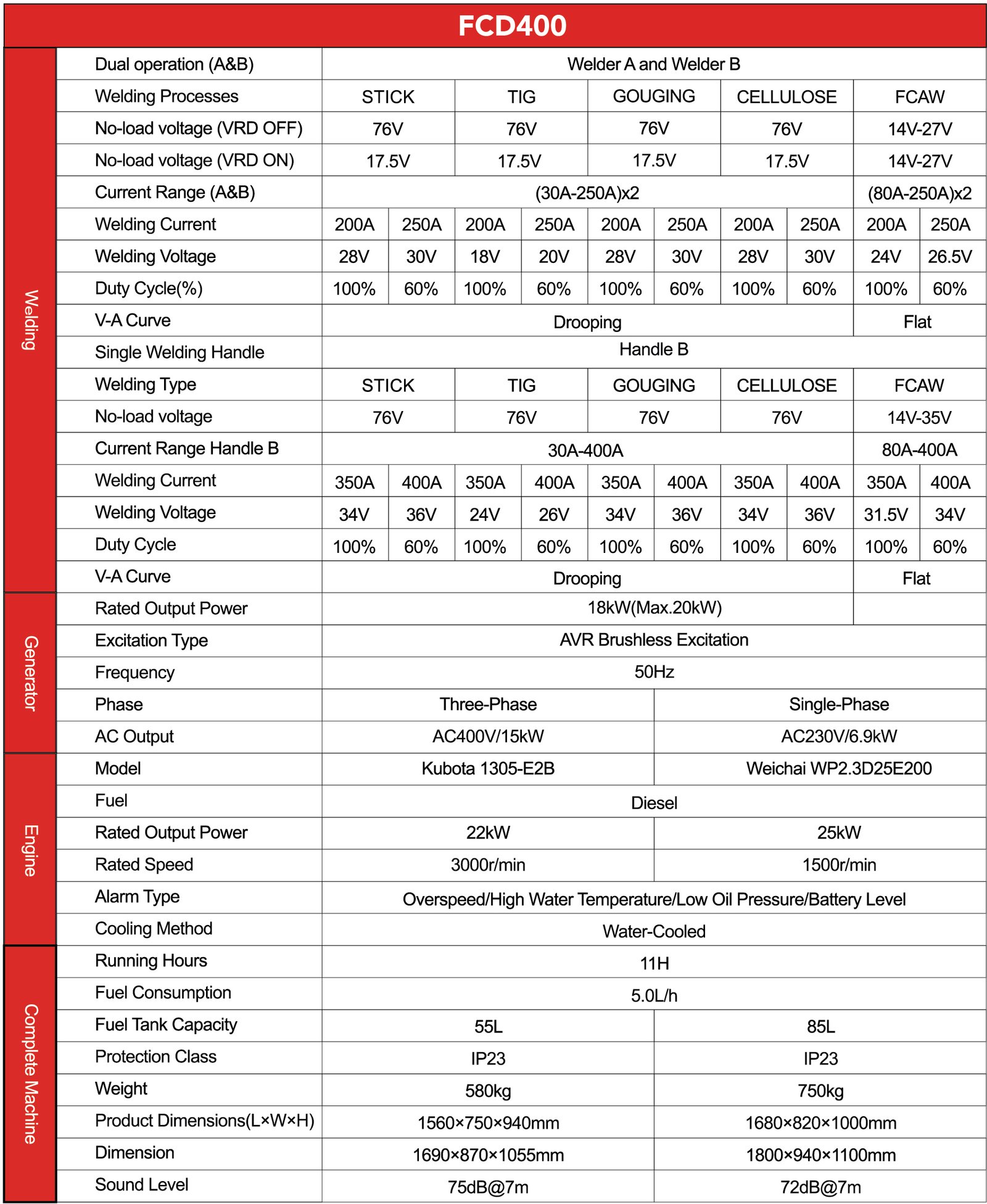

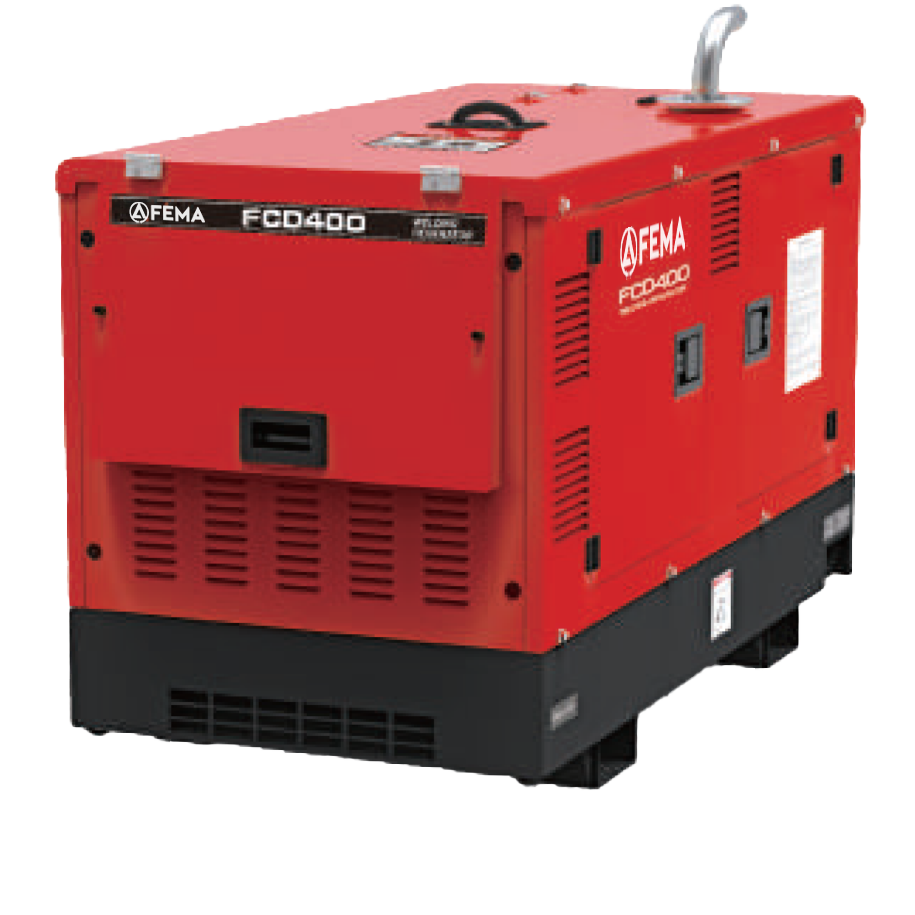

FCD400
An industrial diesel welding workstation featuring dual independent or parallel outputs and long-range remote current adjustment over 15 meters.
· Industrial Diesel Engine
· Power generation and double welding station (independent or simultaneous use) for FCD400 & FCD500
Special functions:
• Remote control of welding current and voltage (15m)
• Automatic idle state
• Exhaust filter

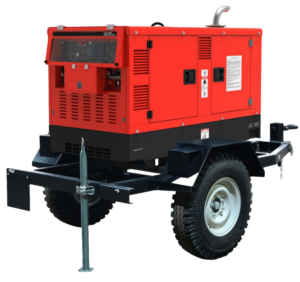

• Optional trailer for easy transport

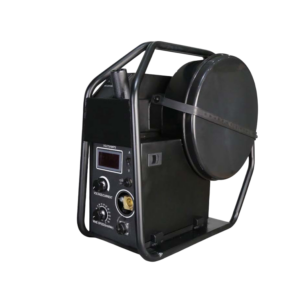

• Optional Wire Feeder
Suitable for:
• Welding of the most common electrodes (including cellulosic)
• LIFT TIG welding
• GOUGING
• FCAW welding (compatible with Lincoln® and Miller® wire feeders)
Diesel

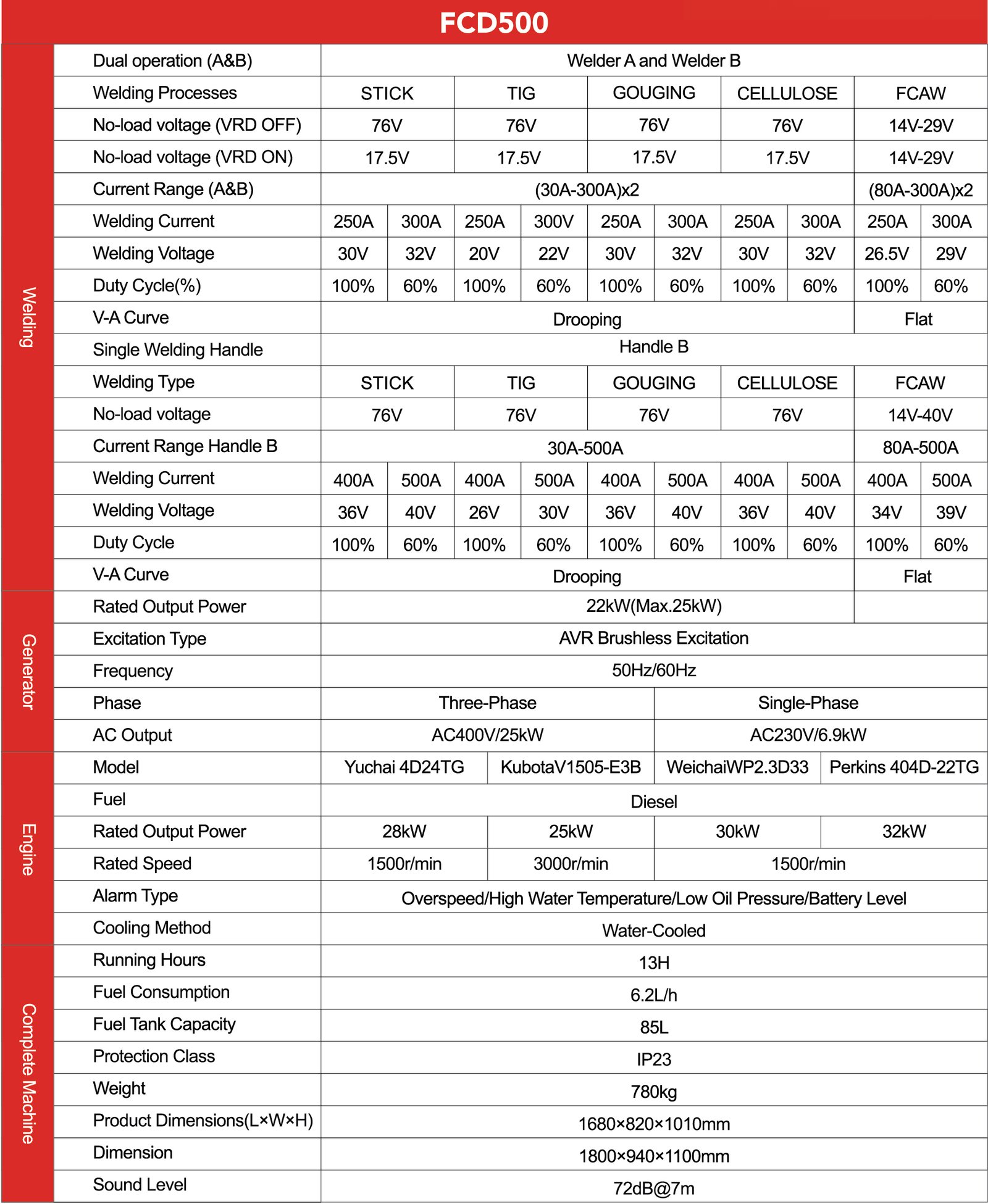

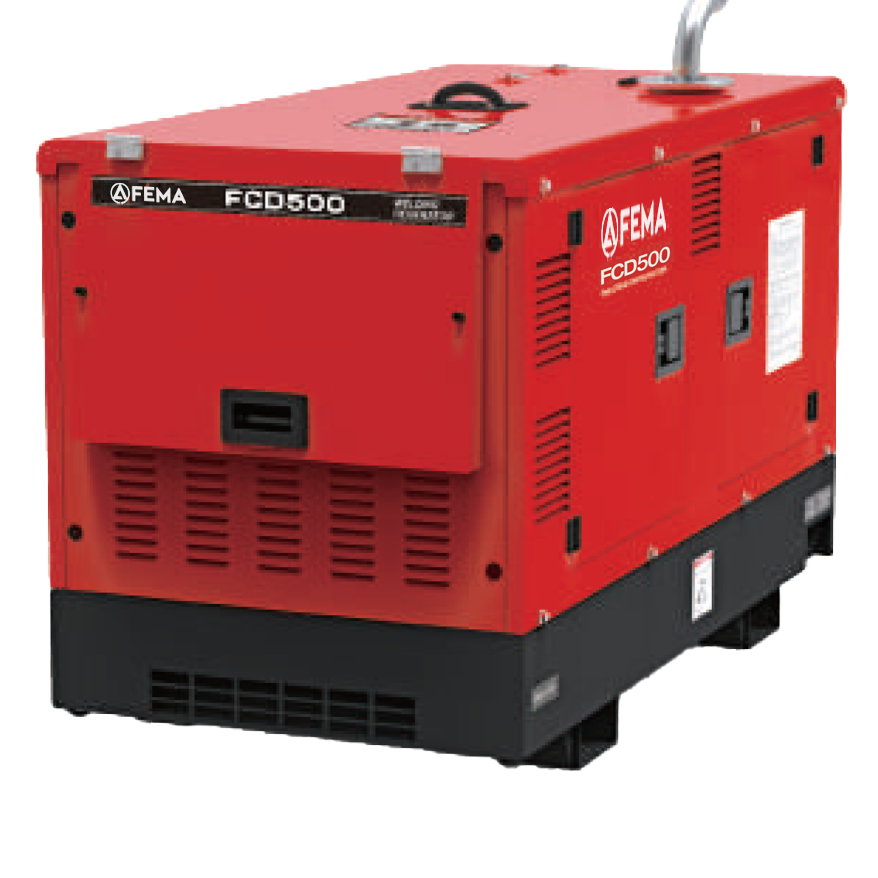

FCD500
An industrial diesel welding workstation featuring dual independent or parallel outputs and long-range remote current adjustment over 15 meters.
· Industrial Diesel Engine
· Power generation and double welding station (independent or simultaneous use) for FCD400 & FCD500
Special functions:
• Remote control of welding current and voltage (15m)
• Automatic idle state
• Exhaust filter
• Optional trailer for easy transport
• Optional Wire Feeder
Suitable for:
• Welding of the most common electrodes (including cellulosic)
• LIFT TIG welding
• GOUGING
• FCAW welding (compatible with Lincoln® and Miller® wire feeders)
